Description
Improved Diagnostic Visibility
The MS55i2plus comes with 1,000 cd/m2 calibration to make it the best solution for breast tomosynthesis imaging. The brighter screen dramatically increases the number of perceptual grayscale steps to improve visibility of microcalcifications, tumors and structures. Mammography diagnostic reading will be much more efficient.
Independent Sub-pixel Drive Technology
This unique technology enables the MS55i2plus to render 15 mega sub-pixel images, exceeding the current standards for primary mammography diagnosis. The MS55i2plus is cleared for FDA 510(k) for the use of Digital Mammography.
Luminance Stabilizing System λ-Sentinel
With two built-in sensors for luminance stabilization and ambient light measurement, MS55i2plus consistently delivers unmatched image quality.
Auto Text Mode
Automatic brightness control for text data to reduce eye strain for patient lists and reporting application.

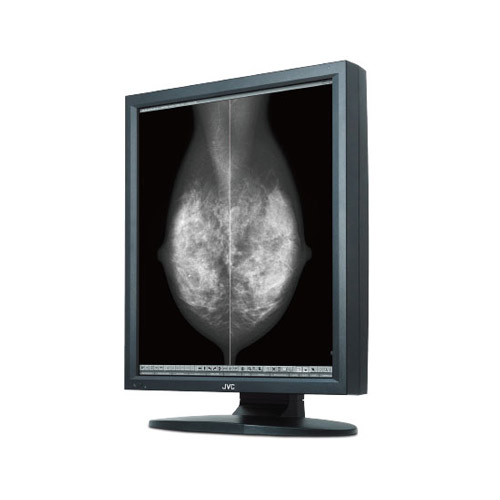

MS55i2plus
Model Name
- MS55i2plus/F : Protective Filter
MS55i2plus/N : No AR Coating or Protective Filter
LCD Panel
- Technology
- 21.3” monochrome TFT IPS technology
- Display Area
- 337.92 mm × 422.4 mm
- Pixel Pitch
- 0.165 mm × 0.165 mm
- Contrast Ratio
- 1400 : 1 (typ.)
- Maximum Luminance
- 2000 cd/m2 (typ.)
1000 cd/m2 ∙ 500 cd/m2 (calibrated)
- Viewing Angle
- 176° vertical and horizontal)
Visual Performance
- Native Resolution
- 2048 × 2560 (Independent Sub-pixel Drive technology ON : 2048 × 7680)
- Display Colors
- 256 shades of grayscale are simultaneously displayed from a palette of 12,277 grayscale steps
*1024 or 10-bit shades of grayscale with DisplayPort and 10-bit viewer
*1276 shades of grayscale by using Independent Sub-pixel Drive technology
Interface
- Input Signals
- DVI-D (DVI 1.0 compliant)
DisplayPort (DisplayPort 1.1a compliant)
- Plug and Play
- DDC2B compliant
Input Power Supply
- Input Power Supply
- 100 V – 240 V 50 / 60 Hz
- Maximum Power Consumption
- 75 W (typ.)
Features
- Calibration Control
- Luminance, Gamma Capable of storing 3 sets of LUT (Optional Calibration kit is required)
- OSD Information Display
- Model name, Serial No., Total operating time, Calibration settings (Operating time since last calibration, Luminance, Gamma), Current luminance and Ambient light, DICOM conformance
- USB Hub
- USB Rev.2.0 compliant, Self-powered
USB upstream connector (×1),
USB downstream connector (×2)
- Other Features
- Uniformity Equalizer, Hardware pivot, LED indicator, Advanced power management, λ-Sentinel,
Multiple LUT, Independent Sub-pixel Drive technology, Self DICOM check, Auto text mode
- Approvals
- ANSI/AAMI ES60601-1 (2005) + A1 (2012), CAN/CSA-C22.2 No. 60601-1 (2014), CE (EN60601-1, EN60601-1-2), RCM, FCC Part15 subpart B Class B, ICES-003-B, VCCI-B, CCC, FDA510(k), J-Moss, RoHS, EAC
Physical Characteristics
- Dimensions(W x H x D)
- Landscape : 474.5 mm × 486.1 / 547.6 mm × 220 mm
Portrait : 390 mm × 525.2 / 586.7 mm × 220 mm
- Weight
- approx. 13 ㎏
- Tilt Stand
- Tilt, Swivel, Portrait / Landscape
- Mount
- VESA standard (100 mm × 100 mm)
- Security Slot
- Anti-theft security slots (display and tilt stand)
Accessories
- Power cord, DVI cable, DisplayPort cable, USB cable, User manual
