Description
Wide Viewing Angles with the IPS Panel, LED Backlight
IPS panel technology provides high brightness, a wide viewing angle and accuracy in color. LED Backlight system contributes more stability in images and energy saving.
Color Calibration
Color calibration function to reproduce colors precise to the original and grayscale compliant with DICOM Part 14 standard.
* Optional calibration kit CAL-016 is required for calibration.
Luminance Stabilizing System
The Luminance sensor in back constantly monitors and accurately stabilizes luminance on the screen to optimize image quality.
Multi-interface
CL-R190 provides for two digital interfaces (DVI-D, DisplayPort), and an analog interface(VGA).

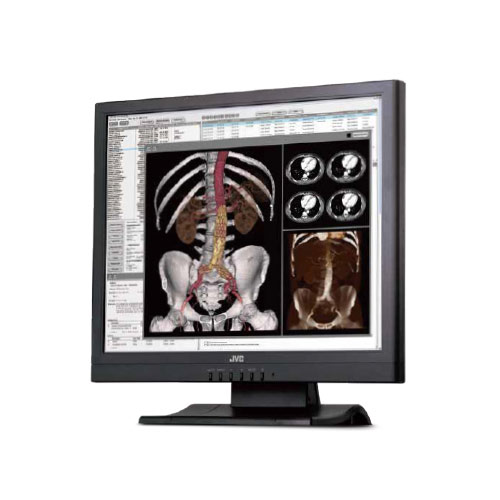

CL-R190
Model Name
- CL-R190
LCD Panel
- Technology
- 19″ color TFT IPS technology
- Display Area
- 374.78 mm × 299.82 mm
- Pixel Pitch
- 0.292 mm × 0.292 mm
- Contrast Ratio
- 1000:1（typ.）
- Maximum
Luminance - 250 cd/㎡（typ.）
150 cd/㎡ ・ 180 cd/㎡ (calibrated）
- Viewing Angle
- 178° vertical and horizontal
Visual Performance
- Native Resolution
- VGA（640 × 480）~ SXGA（1280 × 1024）
- Grayscale
- 16.77 million colors from a palette of 1.064 billion colors
Interface
- Input Signal
- Digital : DVI-D,DisplayPort
Analog : D-Sub mini 15pin
- Plug and Play
- DDC2B compliant
Input Power Supply
- Input Power Supply
- AC 100 – 250V, 50/60Hz
- Maximum Power Consumption
- 22W(max.)
Features
- Calibration Control
- Luminance,Gamma,Color temperature
(Optional Calibration Kit is required)
- OSD Information Display
- Model name, Serial No., Total operating time,
Calibration settings
Approvals
- CE（EN60601-1, EN60601-1-2）, VCCI-B,
J-Moss, RoHS
Physical Characteristics
- Dimensions
(W × H × D) - 419.6 × 411.3 × 190 mm
- Weight
- 4.4 kg
- Tilt Stand
- Tilt
- Mount
- VESA standard (100 mm × 100 mm)
- Security Slot
- Anti-theft security slots
Accessories
- AC adapter, Power cord, DisplayPort cable,
DVI cable, USB cable, Instruction manual
